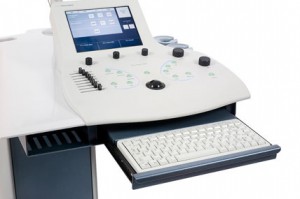

Designed in accordance with the most stringent healthcare requirements, Orcheo XQ is a powerful stationary scanner that represents a unique combination of lightweight mobile system and excellent image quality.

Equipped with state-of-the-art technology, Orcheo XQ will help you to move to a new level of clinical ultrasound diagnosis. The fully digital Orcheo XQ system allows you to obtain images of superior resolution and unsurpassed sensitivity.

Orcheo XQ is equipped with the latest achievements in the field of ultrasonic visualization and thanks to a wide range of built-in modes of operation will cope with your most complex requests. Easy to use and extremely user-friendly interface allows you to instantly establish an accurate diagnosis.

Orcheo XQ is easy to use and updated. Thanks to the open configuration and the possibility of easy updating, it will meet all your requirements and technological tasks for a long time.

Technical capabilities:

• 4 active ports for sensors
• 19 “widescreen LCD monitor with swivel and tilt capability
• Extremely user-friendly interface designed for improved performance and user-friendliness
• Additional touch screen monitor
• Lightweight and compact system
• Fast download and minimum response time
• Ability to connect to the network Dicom 3.0

Clinical spectrum of research:

• Abdominal examinations
• Small and superficial organs
• Breast
• Urology
• Biopsy
• Pediatrics and Neonatology
• Obstetrics and Gynecology (3D / 4D)
• Cardiology
• Investigation of vessels
• Orthopedics and Traumatology

Full range of image methods:

• B-mode
• M-mode
• Color Doppler
• Pulse Wave Doppler
• Continuous-wave doppler
• Duplex and triplex mode in real time with automatic tracing and calculation of parameters of the Doppler spectrum
• Energy and directional energy Doppler – provide an excellent resolution with improved color sensitivity. This is especially valuable for the study of deep-seated organs and thin vessels, when special accuracy is required
• High-frequency repetition of pulses (HPRF) – prevents the appearance of noise on the images when the study is conducted at high frequencies.
• Automatic image optimization Autoset – allows the user to automatically optimize the image in 2D and spectral Doppler mode by simply pressing a button, thus avoiding tedious manual adjustment of parameters.
• Tissue doppler
• Anatomical M-mode

ISteer technology – scans the investigated area from different angles, to improve the visualization of tissues close in density, in the study of the musculoskeletal system, also provides a qualitative visualization during biopsy.

Tissue harmonic – based on the second harmonic technology, combines the ability of deep penetration of an ultrasonic beam with excellent resolution and contrast image. The technology is recommended for examination of “complex” patients.

Trapezoidal scanning – allows you to significantly expand the image field, to obtain more complete information about the organ studied.

3D / 4D Technology

Orcheo XQ – a real breakthrough in ultrasound, because the built-in 3D / 4D technology allows you to receive images in real time and in off-line mode.

Accurate anatomical image: the use of special mechanical sensors to transmit 3D images in real time and off-line mode allows the user to see a three-dimensional image with an exact anatomical image.

Mode 4D allows you to clearly see the three-dimensional image of the object in motion.

Control of 3D / 4D mode is available in both the inspection mode and after the inspection.

A large number of functions for obstetrics and gynecology.

3D / 4D allows you to build an image easily and quickly.

Unique proprietary developments of Sonoscanner ERIOS: Extended Raw Image Optimization Station

ERIOS technology – opens up wide possibilities in post-processing images in real time, frozen images, as well as saved images and video clips, allows to carry out repeated measurements and calculations, control sensitivity and contrast, dynamic range, smooth image for maximum image quality and for in-depth analysis.

RTAS technology is the optimal image smoothing, one of the most used tools in ERIOS. It can effectively suppress noise without loss of resolution. As a result, you get an image more detailed for a quick and accurate diagnosis.
