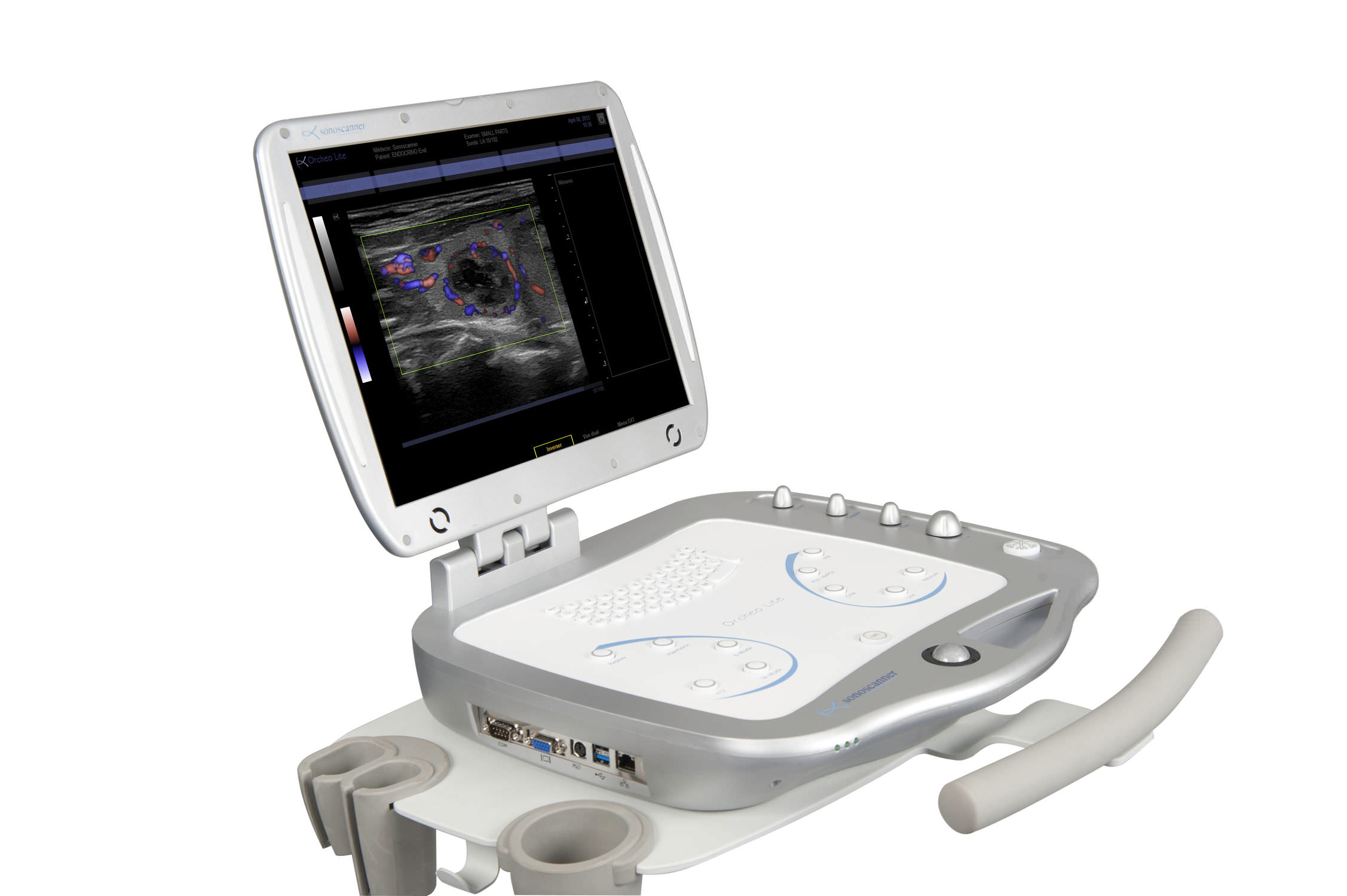

Practical and effective, Orcheo Lite is the only portable ultrasound system designed and developed in France, allowing the ideal quality control of production and reliability of use.

With diverse built-in software systems developed exclusively for this model, our portable ultrasound unit with probes performs a number of different diagnoses which allows many different specialties to take advantage of this tool, whether they be at the hospital or office. You will soon learn to use this portable ultrasound scanning and take advantage of all its features (accurate images, fast, portative…).

Another plus is the ability to easily customize the Orcheo Lite portable ultrasound scanner, thus allowing each Specialist to maximize its potential.

Main characteristics:

OrcheoLite weighs only 5 kg and is a true hand-carry class scanner that will allow you to carry out high-quality diagnostics anywhere and anytime.

OrcheoLite has a high-performance, long-lasting battery in the world. This integrated battery allows OrcheoLite to operate continuously for an hour and a half in the most extreme conditions of an ambulance or sports medicine.

A widescreen 15″ LCD (high-resolution) LCD monitor gives you a clear image.

OrcheoLite has a huge memory capacity of 250 GB, which is more than enough to record and store a large amount of data. This storage capacity is particularly useful for recording raw data for post-processing.

Clinical spectrum of research:

• Small and superficial organs
• Breast
• Pediatrics and Neonatology
• Intraoperative
• Transcranial studies
• Investigation of vessels
• Abdominal examinations
• Obstetrics and Gynecology (4D)
• Studies of the musculoskeletal system
• Urology
• Biopsy

Full range of image methods:

• B-mode
• M-mode
• Color Doppler
• Pulse Wave Doppler
• Duplex and triplex mode in real time with automatic tracing and calculation of parameters of the Doppler spectrum
• Energy and directional energy Doppler – provide an excellent resolution with improved color sensitivity. This is especially valuable for the study of deep-seated organs and thin vessels, when special accuracy is required
• High-frequency repetition of pulses (HPRF) – prevents the appearance of noisy images when the study is conducted at high frequencies.

Automatic image optimization Autoset – allows the user to automatically optimize the image in 2D and spectral Doppler mode by simply pressing a button, thus avoiding tedious manual adjustment of parameters.

ISteer technology – scans the investigated area from different angles, to improve the visualization of tissues close in density, in the study of the musculoskeletal system, also provides a qualitative visualization during biopsy.

Tissue harmonic – based on the second harmonic technology, combines the ability of deep penetration of an ultrasonic beam with excellent resolution and contrast image. The technology is recommended for examination of “complex” patients.

Trapezoidal scanning – allows you to significantly expand the image field, to obtain more complete information about the organ studied.

3D / 4D Technology

OrcheoLite is a true breakthrough in ultrasound, as it is really the first compact solution for 3D / 4D technology, it allows you to receive images in real time and in off-line mode.

Accurate anatomical image: the use of special mechanical sensors to transmit 3D images in real time and off-line mode allows the user to see a three-dimensional image with an exact anatomical image.

Mode 4D allows you to clearly see the three-dimensional image of the object in motion.

Control of 3D / 4D mode is available in both the inspection mode and after the inspection.

A large number of functions for obstetrics and gynecology.

3D / 4D allows you to build an image easily and quickly.

Unique proprietary developments of Sonoscanner ERIOS: Extended Raw Image Optimization Station

ERIOS technology – offers great opportunities in the post-processing images in real time, a frozen image, as well as stored images and video clips, allows for repeated measurements and calculations, control sensitivity and contrast, dynamic range, smooth image to maximize image quality and in-depth analysis

RTAS technology is the optimal image smoothing, one of the most used tools in ERIOS. It can effectively suppress noise without loss of resolution. As a result, you get an image more detailed for a quick and accurate diagnosis
