A cutting-edge automatic blood components extractor. It means standardized blood component production, efficient workflow, safety for operators and minimum waste – all this, with a user-friendly interface.

1. Color graphic Touchscreen – a redesigned, icon-based user-experience with a powerful animated monitoring interface.

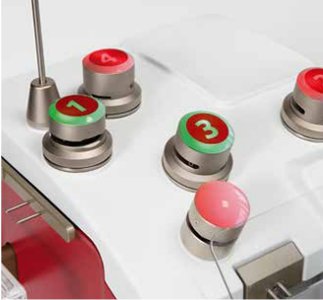

2. Bicolor Clamps – a crystal-clear guide to detect and solve any po ssible warning.
3. Adjustable flow control – with a dedicated clamp (no. 3).
4. Integrated Splash Guard & protected press area – designed for the safety of the operator, with a smooth and everlasting glass press, durable and easy to clean.
5. Hi-res optical sensors in main press – for a precise and programmable buffy coat level.
6. RFID tags – 4 optional embedded antennas to read and write data, with no operator action.
7. Maximum flexibility – 5 clamps, 4 scales (+1 optional external scale) and up to 2 presses.
8. Bespoke solutions – optional sealer, barcode reader and second lateral press.

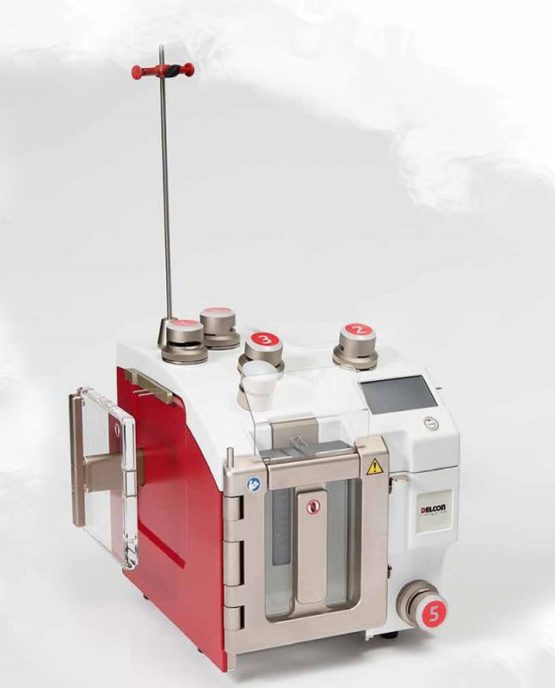

Giotto MONZA is an automatic extractor designed to prepare blood components from centrifuged blood in single-use plastic bags manufactured upon the International Standard ISO 3826 and the European Directives no. 93/42 and 2007/47 MDD.

Technical Data
Dimensions: W x D x H: 330 mm x 430 mm x 430 mm (13 in x 17 in x 17 in)
H +300 mm (11.8 in) for the vertical rod
Weight: 38 kg (83.8 lbs) without accessories
Power supply: 100-240 VAC, 50-60 Hz
Power consumption: 300 VA max

Optical features
Optical sensors: 1 top sensors (OPT1) + 10 front sensors (OPT2)
Display: 4.3 inches color TFT-LCD 480×272 pixel with touchscreen

Separation features
Clamps: 5 with integrated sealer including 1 with Integrated flow regulator for
simultaneous separation of T&B systems
Weighing scales: 4 integrated (+ 1 optional external scale).
Accuracy on read value: ±3 g if < 300 g (0.11 oz); ± 1% if >= 300 g (0.11 oz)
Alerts notifications: Audible and visual (bicolor)
Average separation time: 1:30 min in T&T system; 2:30 min in T&B system

Data Storage
Workflow memory: Up to 50 programs – 16 preloaded programs for the most common separation procedures
Internal memory: 1000 separations files

SDMX remote software system requirements
Processor: Intel Pentium 4 processors or higher
Ports: 1 USB port (plus RS485 adapter) or 1 Ethernet or WiFi port 802.11 b/n/g
Memory: 4 GB RAM – 256 MB of free space on the Hard-Disk
Resolution: 1024 x 768 minimum resolution, 16 million colors
Operating System: Windows Win7, Win 8, Win 10 (Micocrosoft .NET Framework 4.5 required)
